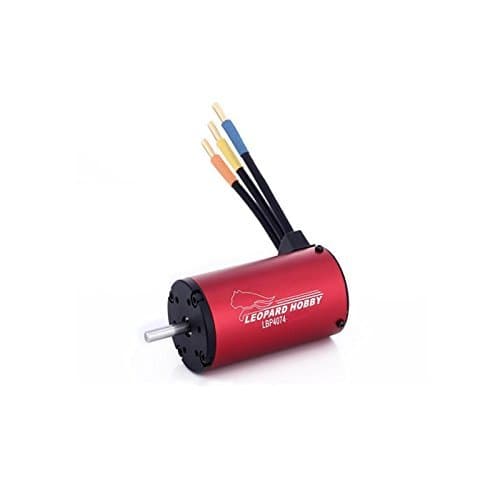

- The Leopard 4074 is one of the most popular offerings from Leopard. A solid motor that delivers good torque and speed for your 1/8 scale
- Leopard motors are built using the highest grade components for outstanding performance and long life. The latest generation 4-pole rotors provide massive torque, and are Kevlar wrapped to ensure the magnets stay put at all RPM’s.
- All components are precision machined, balanced and hand-built to guarantee quality, and with an extensive product line including many sizes you just won’t find from other manufacturers you are sure to find a Leopard motor to fit your application.
- Precision machined aluminum housing Kevlar wrapped, 4-pole rotor Imported high-speed Japanese bearings Hand wound stator, using high-purity/high-temperature copper wire Excellent heat dissipation
- Model: 4074/2.5Y Max Amps: 120A Max Voltage: 25V Max Power: 2600W KV (RPM/Volt): 2000 Resistance: 0.0062 No-Load Current(15V) 1.7A Dimensions(mm): 39.8x73.8 Mounting Hole Depth(mm): 7 Shaft Length (mm): 20 Shaft Diameter(mm): 5.0 Weight(g): 475
The Leopard 4074 is one of the most popular offerings from Leopard. A solid motor that delivers good torque and speed for your 1/8 scale. Leopard motors are built using the highest grade components for outstanding performance and long life. The latest generation 4-pole rotors provide massive torque, and are Kevlar wrapped to ensure the magnets stay put at all RPM’s. All components are precision machined, balanced and hand-built to guarantee quality, and with an extensive product line including many sizes you just won’t find from other manufacturers you are sure to find a Leopard motor to fit your application.
