🔴 Switch to reliability and style with every turn!

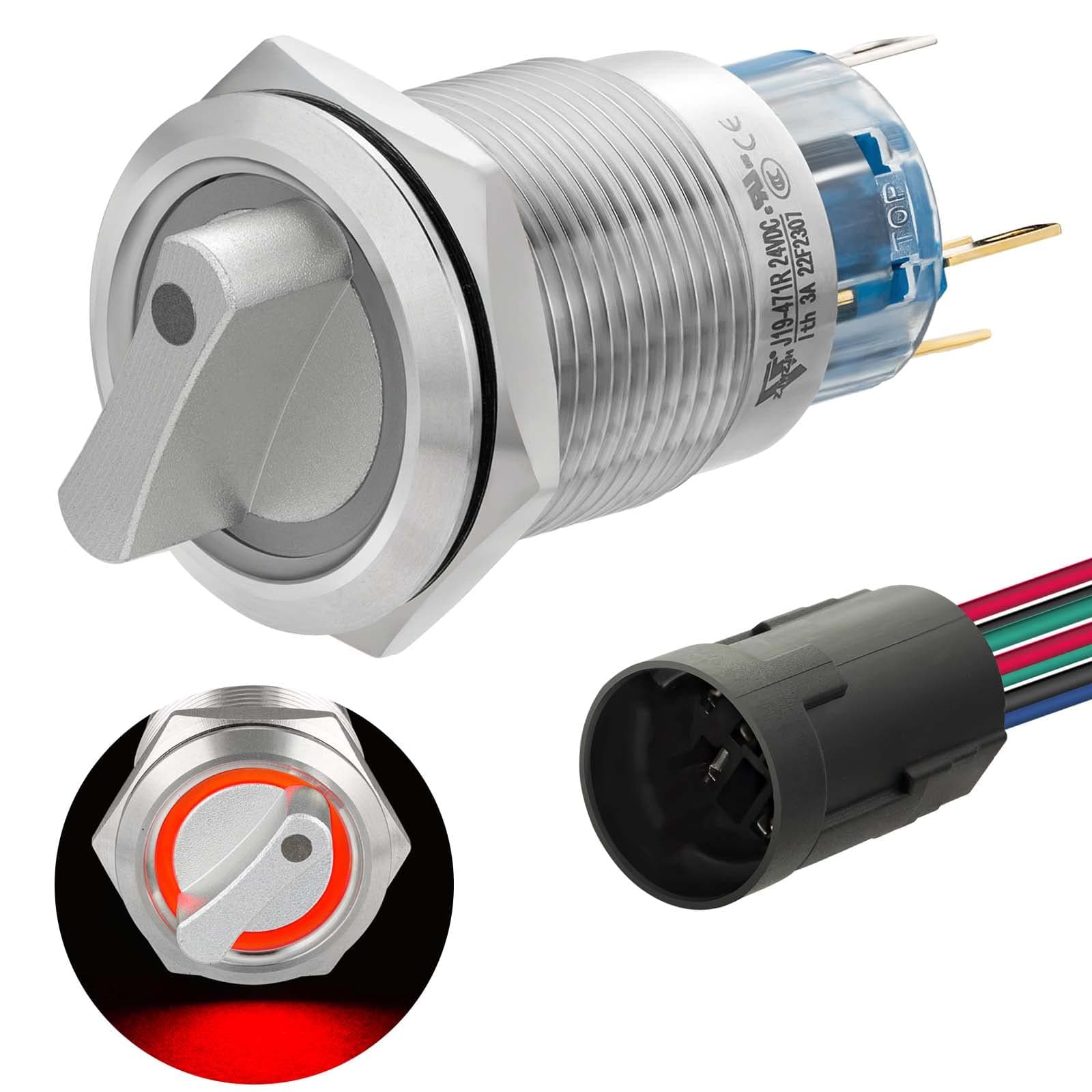

This 19mm rotary selector switch features a durable stainless steel 304 body with IK10/IP40 protection, a bright red LED indicator, and a 2-position latching mechanism. Certified by UL and CE, it supports 12-24V DC/AC operation with a maximum voltage of 250V AC and rated current up to 5A. Designed for professional-grade applications, it offers 300,000 mechanical and 100,000 electrical cycles, ensuring long-lasting performance and easy installation with included wire connectors.
G**E
Nice switch, and great for my use
Using this as the control switch for two separate light circuits for fog and driving lamps.
K**A
EXACTLY HOW THIS WORKS
Two wires power the LED, not associated with any switch, it needs 12VDC. This is a DPDT switch. There are 3 positions, center, turn to LEFT, and turn to RIGHT. In the center, each common in connected to its NC. When you turn the switch to the left(it stays, NOT momentary), the the left common is connected to the NO, and the right common stays connected to its NC. When you turn the switch to the right(it stays, NOT momentary), the right common is connected to its NO, and the LEFT's common to its NC. The switch is perfect. Not all the switches have all the options-- this switch has 8 wires, 2 for leds and three for each independent SPDT switch(2 spdt switches make a dpdt of course).
R**S
Not the easiest to wire
The media could not be loaded. I wanted to use this to select cameras in my car; a simple SPDT rotary switch to active to select one of two cameras with the center off. I also wanted the LED to light up as I switched between cameras. It took a bit of work on the test bench and two diodes to get it done. But Im happy with the results.I used diodes ordered from Amazonhttps://www.amazon.com/dp/B07X7VJ7ZC?psc=1&ref=ppx_yo2ov_dt_b_product_detailsI used 3:1 shrink wrap to keep it all neat and avoid shorting.
H**C
Better than a touch button, for me
I had a touch button but the location on my boat when it got wet would turn it on. This is the perfect solution for my application. I did have to return to the Amazon product page to figure out how to wire it correctly. the instructions were kind of vague.
J**A
.
The switch is really good I just give 3 stars because the instructions are really confusing and the wire colors don’t help the little things that I know it that the black wire is negative and red positive but on this the black is positive and all the wires are a mess I only installed it with the help of someone’s review that put some pictures and a diagram of the wires
M**.
Great Product
Received fast and as shows
R**O
Not as advertised
Switch is advertised as 3 positions. which it does, knob has 3 positions.Fully counter clockwise = common to ncCenter = common to ncFully clockwise= common to noOnly two electrical positionsNot ON OFf On it is On On Off
A**K
Interesting
You need to look at the switch’s back labels to see the correct connections.- negative 12v led+ positive 12v ledC commonNO normally open but closed when the switch is pointed to that set of connectionsNC normally closed but only opens when the switch is pointed to that set of connectionsNC does NOT open except with the switch pointing to that side.The LED turns on at 2.35V and is semi-dimmable up to 24V. 2ma draw on the LED @ 24V
