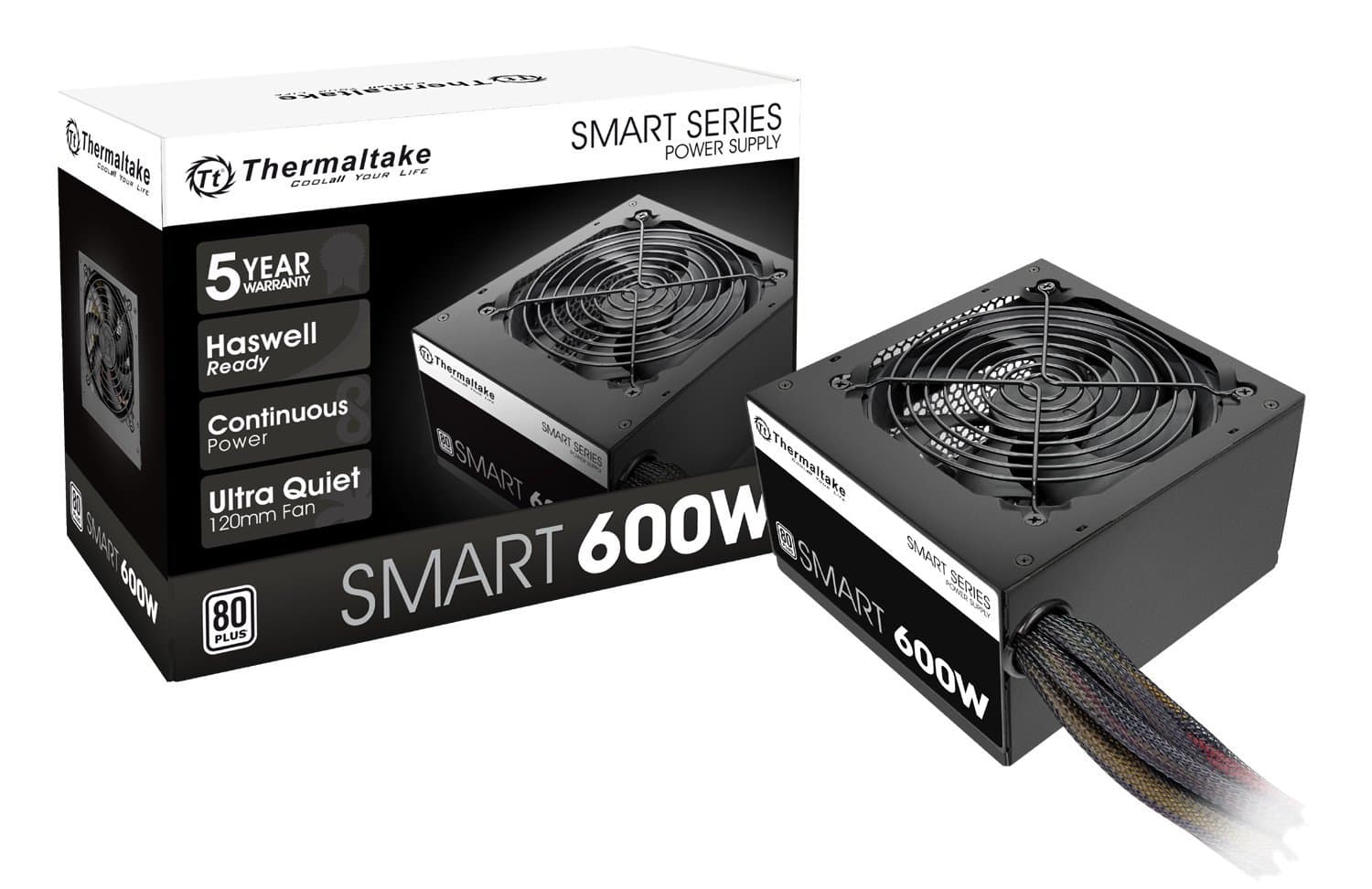

Smart 80 Plus White 600W

Description

さまざまな高品質のコンポーネントを組み込んだSmart Series - モデルは定格500Wから700Wです - 最大86%の高効率でエネルギーを節約し、最も厳しい要件を満たす主流のビルドに対応します。 内蔵のインテリジェント冷却ファンは、非常に低い騒音レベルで優れた通気性を提供します。 さらに、シングル+12Vレール設計により、安定した信頼性の高いパフォーマンスでノンストップで使用できます。 P/N:PS-SPD-0600NPCW**-W ショートP/N:SPD-0600P モデル:SP-600AH2NKW タイプ:Intel ATX 12V 2.3 最大。 出力容量:600W 色:黒 寸法:高さ86mm x 幅150mm x 140mm PFC(力率補正):アクティブPFC パワーグッド信号:100-500ミリ秒 ホールドアップ時間:負荷60%以内16msec (最小) 入力電流:最大10A 入力周波数範囲:50Hz~60Hz 入力電圧:100Vac - 240Vac 動作温度:5℃~+40℃ 動作湿度:20%~85%、結露しない 動作温度:-40℃~+55℃ 保管湿度:10%~95%、結露しない 冷却システム:120mm ファン:1800 R.P.M ± 10% 効率:82-86%効率@ 20-100%負荷 MTBF:最低100,000時間 安全承認:CE/CB/TUV/ UL/ FCC PCI-Eコネクタ:PCI-E 6+2ピン×2 Review: silencieuse et bonne qualité - J’utilise cette alimentation Thermaltake 600 W dans mon build PC et elle fonctionne parfaitement. L’installation a été simple et elle fournit suffisamment de puissance pour ma configuration. Elle fonctionne de façon stable et sans problème jusqu’à présent. Pour le prix, c’est une bonne alimentation pour un build PC, je suis satisfait de mon achat. Review: Awesome value in the 600w or 850w - have used these in a back up gaming pc build for my son and daughter and they are fantastic value In a 600w units!!! I also a 850 gold for my RC battery charger. My charger when I'm charging my 2-3s 5000mah packs in parallel 6 batteries per channel on both channels so 12x 3s 5000 mah lipo packs I'm charinging at 70 amps. My Icharger 406 duo is capable of 40 amps per channel and 70 amps if running both channels. So it's pushing out 840watts during the charge cycles and it handles it with no issues what so ever. No thermal issues when demanding 840 watts from it contentious and voltage stays locked in. The 850w gold I've had for seems about 2 years now and it's used to charge pretty much every single day. Some times it's 12x 5000mah packs parallel charged one set after the next when my kids and I are flying and or driving rc cars, boats, planes.. my icharger 406 duo and this power supply do very well together for rapid charging of the 2-3 cell lipo packs from 2200mah to 5000mah. For me being as close to the wattage as I am, pulling 840 constant @70 amps out of a 850w unit I fully expected to have some thermal issues and figured ide just charge at 60amps if it's having trouble delivering the 70a constant. But shockingly it handles 840w constant and has for two years or more without issues. Now I will say when the charger is in constant current part of the charging and it's putting out 70 amps of charge current the unit will get pretty dang warm but nothing to serious, at room temperature of 72F during a 70 Amp charge on 5000mah packs to where it's sustaining 840 watts of demand it will get up to maybe 110F but with a external fan blowing on it the temps will stay in the 95-100F range. For the 50 bucks I paid for the 850 gold it's been a mega good value for my needs. Reliable, quiet, smooth current delivery, very consistent voltage under high load... it's just been a dang good power supply as have both the 600w units in the back up gaming PC builds for my son and daughter. I never would have thought that the 850 watt gold would have been able to sustain 12v/70amp demand consistently as it's to close to its max wattage, I totally expected that I would have to back the current down to 60a so that would be around 720 watts for it to not have thermal issues with the power demands. It has done it for 2 years or more now and never skips a beat! If you have a computer build that needs a 850w supply I would absolutely say the 850w gold would do you a fantastic and reliable job! Computers put no where near the constant load on a unit as a high power lipo battery charger and it handles it without issue so I have no doubt it would do the same in a high demand PC build. I'm sure there are better built units out there, I'm sure there are units that deliver slightly cleaner power but at the price I don't think any other unit comes close to these. Buy one and you won't regret it, they are rock solid values and high performance units.
