Question 1

Are the power rail continuous all the way down? Customer pictures do not match the product picture provided by the seller.

Accepted Answer

Thanks for the question. Yes, the power rails are continuous down the entire length of the board. You may see some images not matching our current photos as we had some other companies trying to pass their boards off as BB830s so we updated our silkscreen last year to show our part number, brand, as well as change the power rail colors from Red/Blue to Red/Black so that visually you know you've gotten the genuine deal! Feel free to visit the BB830 page on the Busboard website, and in the data sheet you'll see all the copper strip connections. Thanks for choosing BusBoard and we hope you take care and stay safe!

Question 2

How many amps is the board rated for at 12v?

Accepted Answer

Thanks for the question. The BB830 breadboard is rated at 36 Volts, 2 Amps. The current rating is due to the typical heating caused by the conductors (wires) and the internal terminal contacts.  A bit higher current and a bit lower heating can be achieved by using square post pins instead of round wires, and using multiple wires or posts to carry current to decrease the contact resistance.  It is important to keep the temperatures below the ABS heat distortion temperature which is 84℃. The voltage rating is due to safety concerns of work with hand assembled open-air circuits.  The actual breakdown voltage between terminals is higher.

Question 3

ship to argentina?

Accepted Answer

Hello Nehuen, Yes we can ship this item all the way to Argentina.  Thanks! Manny

Question 4

ship to Uzbekistan?

Accepted Answer

Thank you for your question. We use Amazon's Fulfillment Services (FBA) which means they handle all orders and shipments. While we don't have any restrictions on our products, Amazon may have restrictions on international shipping. You will need to contact them for specific shipping questions like yours.

ASIN	B0040Z4QN8
Best Sellers Rank	#16,143 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #28 in Prototyping Boards & Accessories
Brand Name	Busboard
Customer Reviews	4.7 4.7 out of 5 stars (843)
Global Trade Identification Number	00610074522645
Item Dimensions L x W x H	6.5"L x 2.2"W x 0.3"H
Item Weight	73 Grams
Manufacturer	BusBoard Prototype Systems
Material Type	Plastic
Maximum Current	2 Amps
Model	BB830
Part Number	BB830
Phase Type	Single Phase
UPC	610074522645

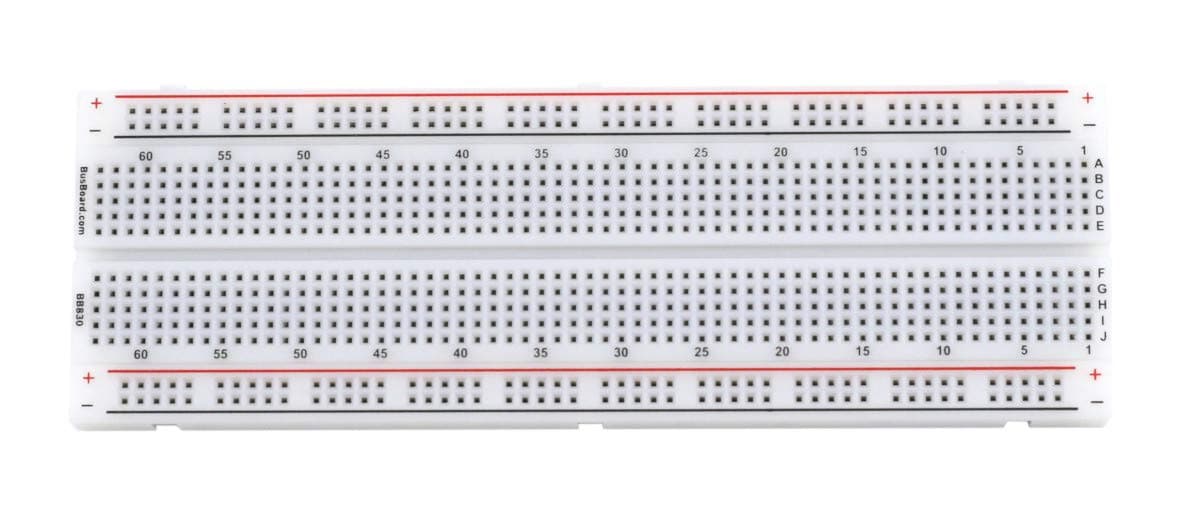

BB830 Solderless Plug-in BreadBoard, 830 tie-Points, 4 Power Rails, 6.5 x 2.2 x 0.3in (165 x 55 x 9mm)
