Introduction

This product is an E-paper device adopting the image display technology of Microencapsulated Electrophoretic Display, MED.

The initial approach is to create tiny spheres, in which the charged color pigments are suspending in the transparent oil and would move depending on the electronic charge.

The E-paper screen display patterns by reflecting the ambient light, so it has no background light requirement. Under sunshine, the E-paper screen still has high visibility with a wide viewing angle of 180 degree. It is the ideal choice for E-reading.

Specifications

Operating voltage: 3.3V/5V

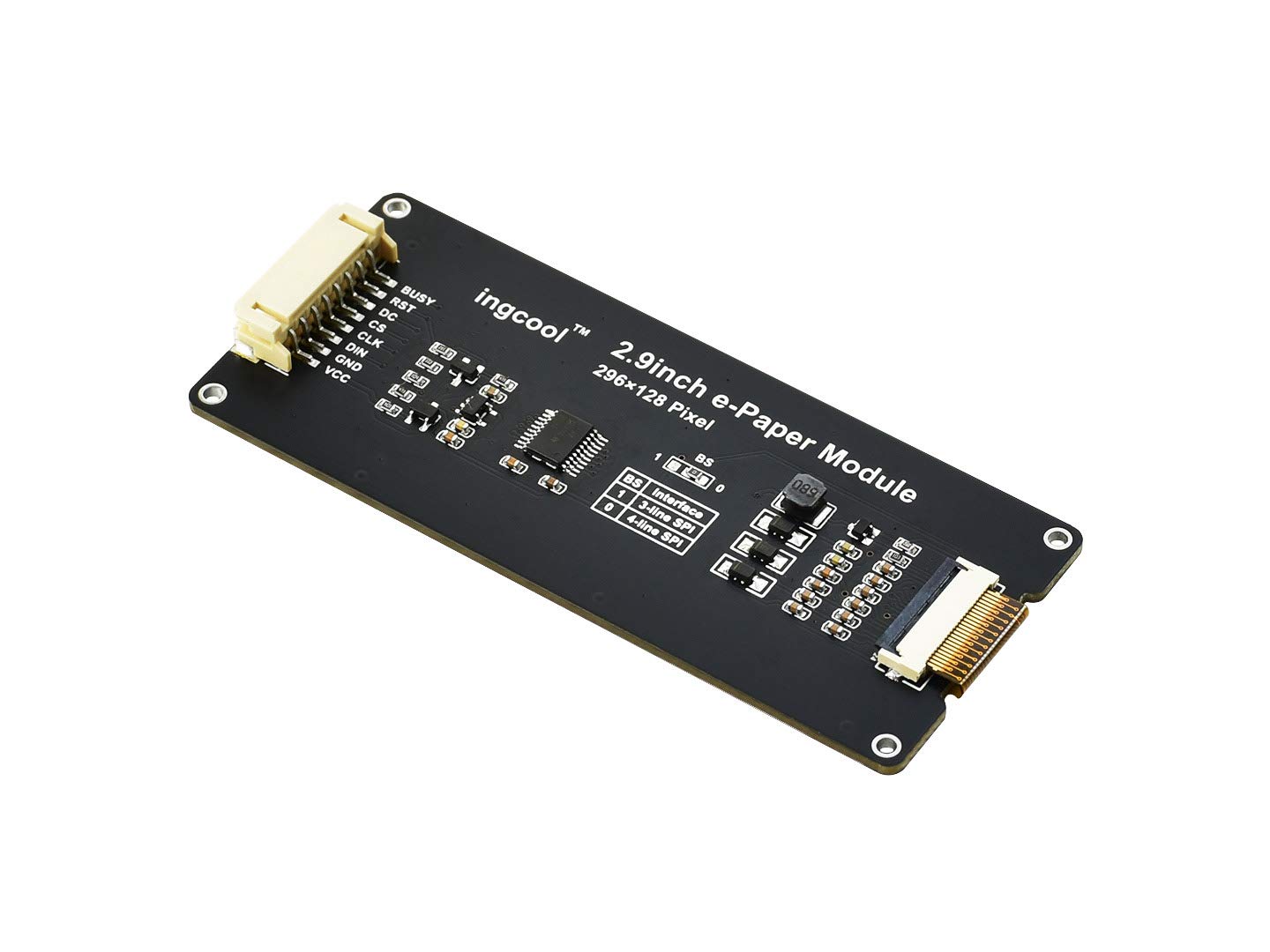

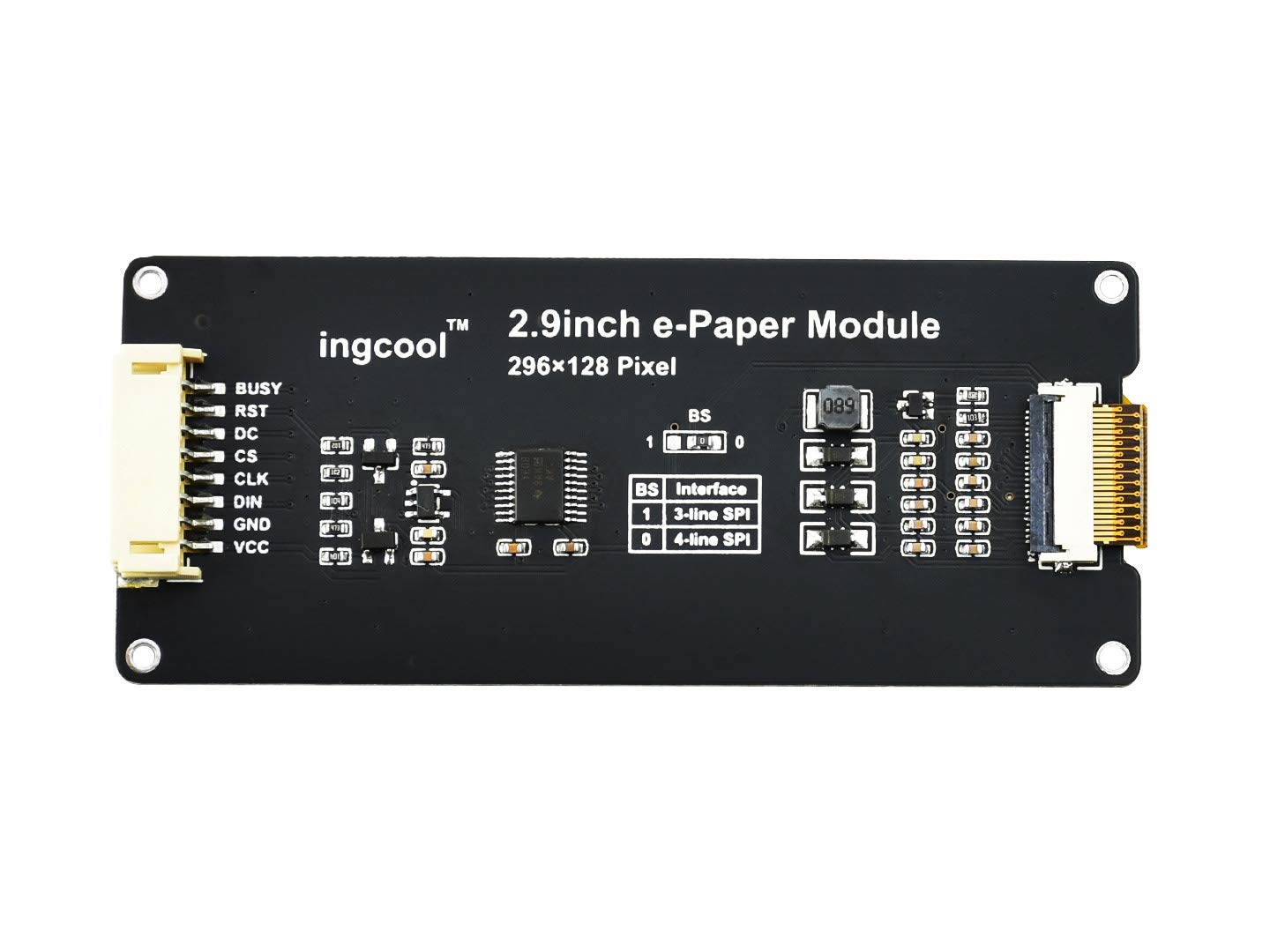

Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 89.5mm × 38mm
Display size: 66.89mm × 29.05mm
Dot pitch: 0.138 × 0.138
Resolution: 296 × 128
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power:＜0.017mW
Viewing angle: ＞170°

Development Resources

http://www.ingcool.com/wiki/2.9inch_e-Paper_Module?

Package Content

2.9inch E-paper Display Module x1
PH2.0 20cm 8Pin x1

Note

1.We provide examples for four popular platforms: Arduino UNO, Jetson Nano， Raspberry Pi, and STM32. You can refer to the corresponding part according to the platform you use(This is a common template will be used by all types of the e-Paper, please refer to the corresponding type you have).Please contact us if you need any help.

Brand	Ingcool
Package Dimensions	11.71 x 7.39 x 3.2 cm; 40 g
Item model number	2.9inch E-paper Display Module
Manufacturer	Ingcool
Series	2.9inch E-paper Display Module
Color	2.9inch E-paper Display Module
Standing screen display size	2.9 Inches
Screen Resolution	296x128
Resolution	296x128
Voltage	5 Volts
Are Batteries Included	No
Item Weight	40 g

Ingcool 2.9inch e-Ink Display Module, 296x128 Resolution Two-Color e-Paper Display epaper Screen for Raspberry Pi/Jetson Nano/Arduino/Nucleo,SPI Interface Support Partial Refresh
