the picture is self explanatory. It mounts to the flex sensor

DOWNLOAD THE APP

WE SOURCE ITEMS FROM

UAE
UK
India
USA
Japan

Customer Services

About Us

Customer Support

Desert Online General Trading LLC

Dubai, United Arab Emirates

40T-Performance E85 Flex Fuel Sensor Mount/Bracket Bypass Module - Robust Mount for Full Flow from Your E85 Flex Fuel Sensor to Fuel Rails - Solid 6061 Billet - 6AN and 8AN Fittings Included

40T-Performance E85 Flex Fuel Sensor Mount/Bracket Bypass Module - Robust Mount for Full Flow from Your E85 Flex Fuel Sensor to Fuel Rails - Solid 6061 Billet - 6AN and 8AN Fittings Included

Q: Mounting bracket is included correct?

yes mounting bracket is included for the 2023 revisions. If for some reason your does not, and there are any in circulation, we will ship one out to you asap! Feel free to ask any other questions we also have a direct tech line call/text 24/7 - Dave

Q: When will the mounting when will the mounting bracket be available. even be available. even with an lines it's not secure enough and needs a bracket.

hi, the mounting brackets are available and have been shipping with all orders, if for any reason your order didnt include the bracket send us a direct message or you can use the phone number in then packaging to reach us direct and we will ship out the bracket the same day! Regards -Dave

Q: Are the 6/8an fittings -8 orb where they enter the block?

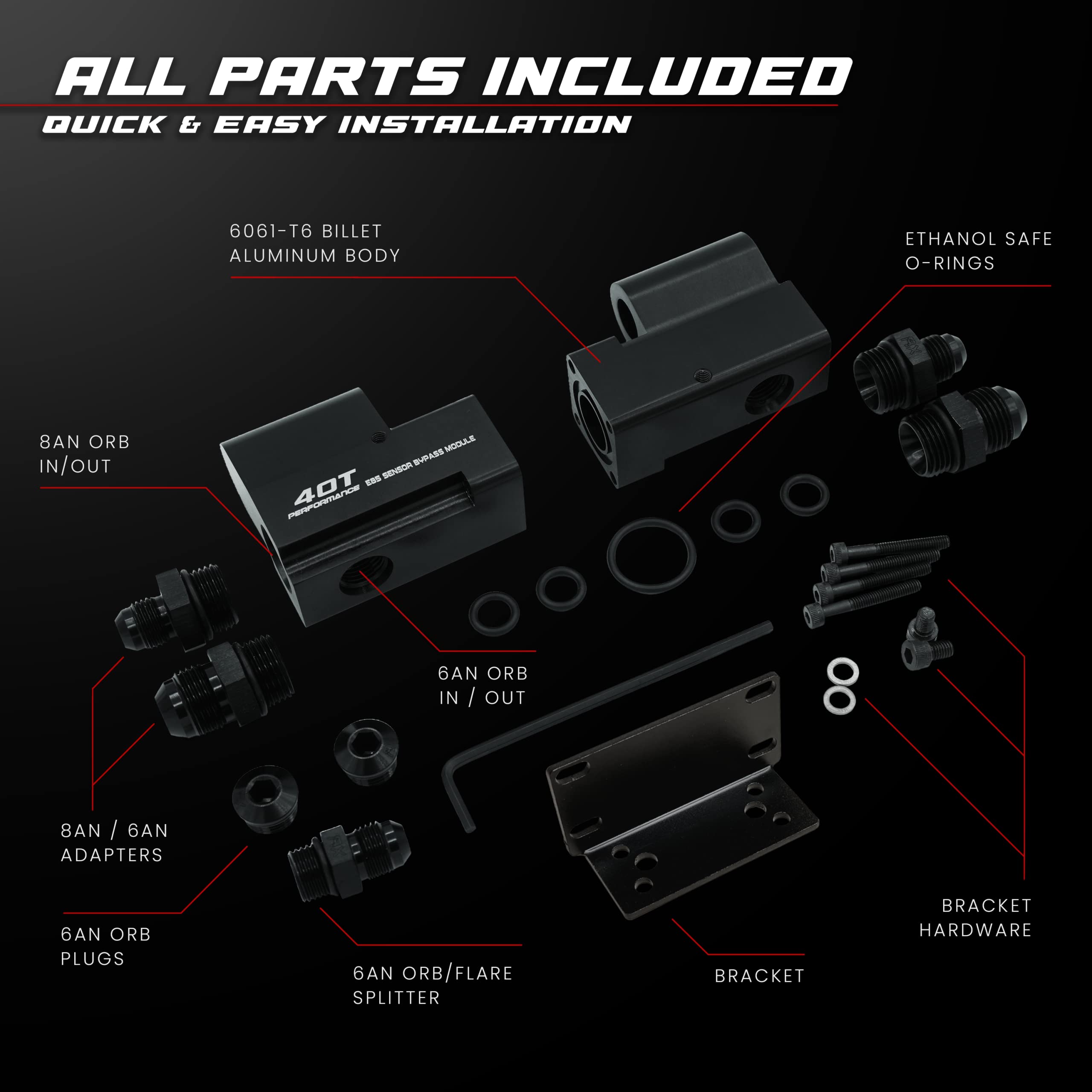

yes the inlet outlets are 8an orb. Included are (2) 8an-8an and (2) 8an-6an the plugs on the bottom are 6an orb. One additional fitting (6an orb to flare) is provided so one of the plugs on the bottom can be used as a feed (in a dual fuel rail setup) so the module works conveniently as a splitter We also have started including mounting brackets with hardware to solid mount the bypass module

Product ID: 336301417

Secure Transaction

Details

Colour
Black
Brand
40T
Material
Aluminum
Item dimensions L x W x H
14 x 3.3 x 5.8
Finish type
Unfinished

💧Double o-ring leak-proof design

🔥Supports up to 1000HP E85 flow

🛠️Premium 6061 billet aluminum & stainless hardware

Frequently Bought Together

40T-Performance E85 Flex Fuel Sensor Mount/Bracket Bypass Module - Robust Mount for Full Flow from Your E85 Flex Fuel Sensor to Fuel Rails - Solid 6061 Billet - 6AN and 8AN Fittings Included

ACDelco GM Genuine Parts 13507128 Flex Fuel Sensor

Flex Fuel Sensor Connector Replacement for GM E85 Flex Pigtail Plastic Fuel Composition Ethanol E85-2

Description

⚡ Power your E85 setup with precision and zero leaks!

UNMATCHED 1000 HP FUEL FLOW - Parallel dual-path design ensures max ethanol flow without sensor compromise
QUICK SECURE INSTALLATION - Assembles over your sensor in minutes with included L-bracket mount—no sketchy fittings
CONFIDENCE BACKED BY WARRANTY - 3-year hassle-free coverage plus direct tech support for peace of mind

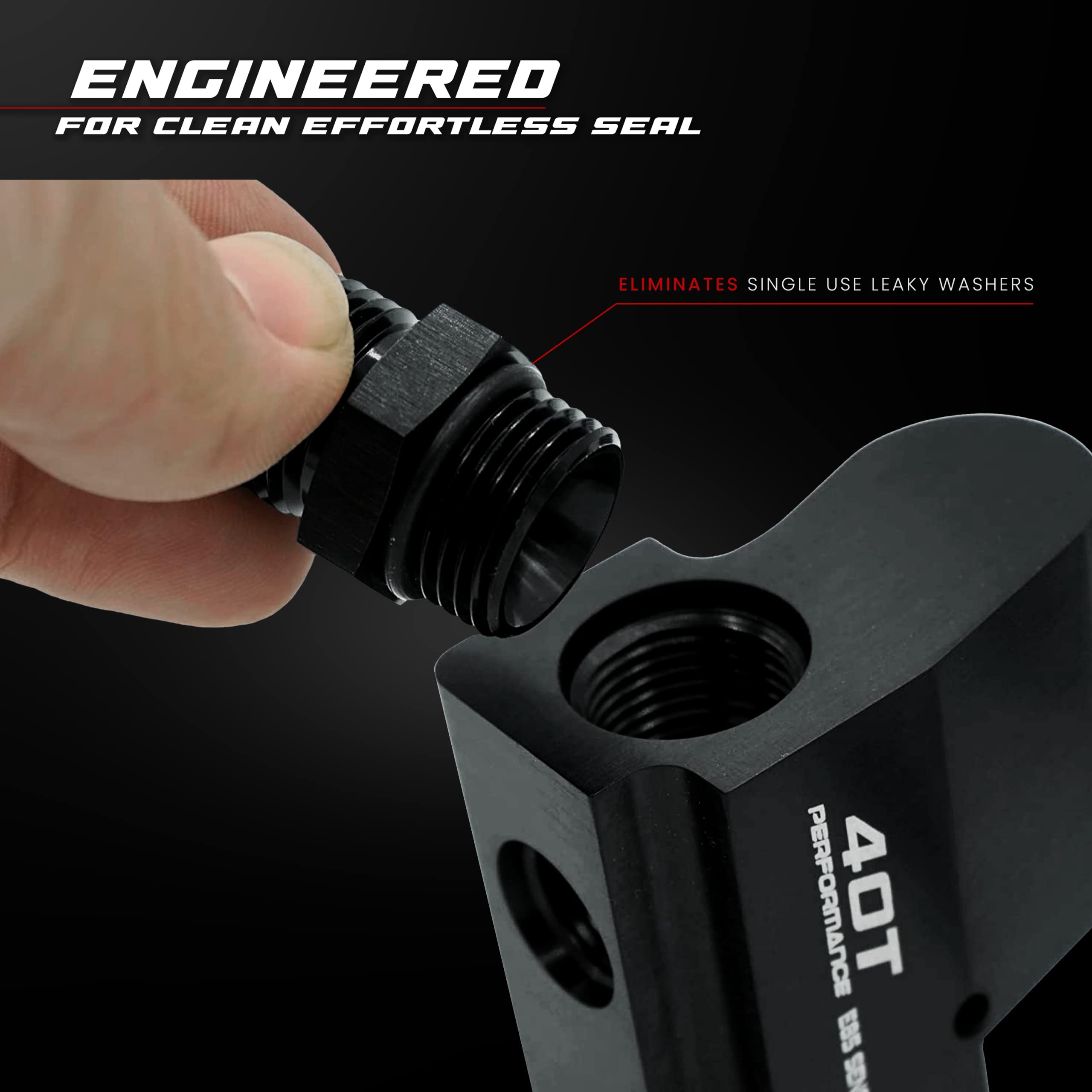

PRECISION LEAK PROOF ENGINEERING - Double o-ring seals and AN fittings with o-rings eliminate risky fuel leaks
VERSATILE MOUNTING COMPATIBILITY - Fits inline or V engines, feed or return side, with most common E85 sensors

The 40T-Performance E85 Flex Fuel Sensor Bypass Module is a robust, USA-engineered billet aluminum mount designed for high-performance ethanol fuel systems. Supporting up to 1000HP, it features a unique parallel flow design allowing accurate ethanol content readings while maintaining full fuel flow. Its double o-ring sealed AN fittings prevent leaks, and the versatile mounting fits most inline or V engines and common E85 sensors. Backed by a 3-year warranty and expert tech support, it’s the ultimate upgrade for serious E85 enthusiasts.

Specifications

Unit count	1.0 Count
Item depth	5.5 inches
Mounting type	Flange Mount
Manufacturer	40TPerformance
Part number	40tp-e85-bpm-6an8an
Item Weight	572 g
Product Dimensions	13.97 x 3.3 x 5.84 cm; 572 g
Manufacturer reference	40tp-e85-bpm-6an8an
Color	Black
Style	Modern
Finish	Unfinished
Specific uses	High-performance vehicles, Ethanol flex fuel sensor installation, Inline or V engines, Fuel pressure equalization
Batteries Included?	No
Batteries Required?	No

Have a Question? See What Others Asked

Mounting bracket is included correct?

How does it mount ?

When will the mounting when will the mounting bracket be available. even be available. even with an lines it's not secure enough and needs a bracket.

Are the 6/8an fittings -8 orb where they enter the block?
