UT590 Series Multifunction Installation Testers

UT590 series multifunction testers mainly test RCD, loop/line impedance, earth resistance continuity, insulation resistance and AC/DC voltage.

They are applicable to electrical installation, inspection and repair at home or in construction industry. Models in UT590 Series: UT593, UT595

Features of UT590 Series Multifunction Installation Testers

Certifications: CE

● 9999-count LCD display with analogue bar

● 250V~1000V DC insulation resistance test

● 200mA earth-resistance continuity test

● Loop impedance/Prospective Fault Current (PFC)/Prospective Short Current (PSC) test

● Lock test

● RCD trip time test and the data storage with one key

● Full/Half wave and count downing (30s) test mode selectable

● 0°/180° phase angle option to detect the fastest trigger time

● Trip current test of RCD trip time X2

● RCD trip trigger current test

● Phase sequence and missing test

● AC/DC voltage auto check and test

● Connection check with status real-time display

● White backlight; auto power off

Features

Display count 9999

Auto power off √

Low battery indication √

Data storage √

LCD backlight √

Auto half-wave test √

RCD count down test 30s √

RCD half-wave test √

Phase conversion (RCD) 0° and 180° √

General Characteristics

Power 1.5V battery (5#) × 6

LCD size 125mm × 37mm

Product color Red and grey

Product net weight 1000g

Product size 210mm × 175mm × 90 mm

Manufacturer	UNI-Trend
Part number	HY-UT593
Item Weight	600 g
Product Dimensions	16.5 x 11 x 12 cm; 600 g
Batteries	1 Lithium Metal batteries required. (included)
Item model number	HY-UT593
Size	UNI-T UT593
Colour	Multicolored
Style	Ground resistance meter
Material	acrylonitrile_butadiene_styrene
Pattern	HY-UT593
Power source type	Battery Powered
Wattage	5 watts
Item Package Quantity	1
Measurement System	Metric
Measurement Accuracy	+-0.1%
Specification met	CE, ISO 9001, RoHS, UKCA
Special Features	light
Included components	UT593
Batteries included?	Yes
Batteries Required?	Yes
Battery Cell Type	Lithium

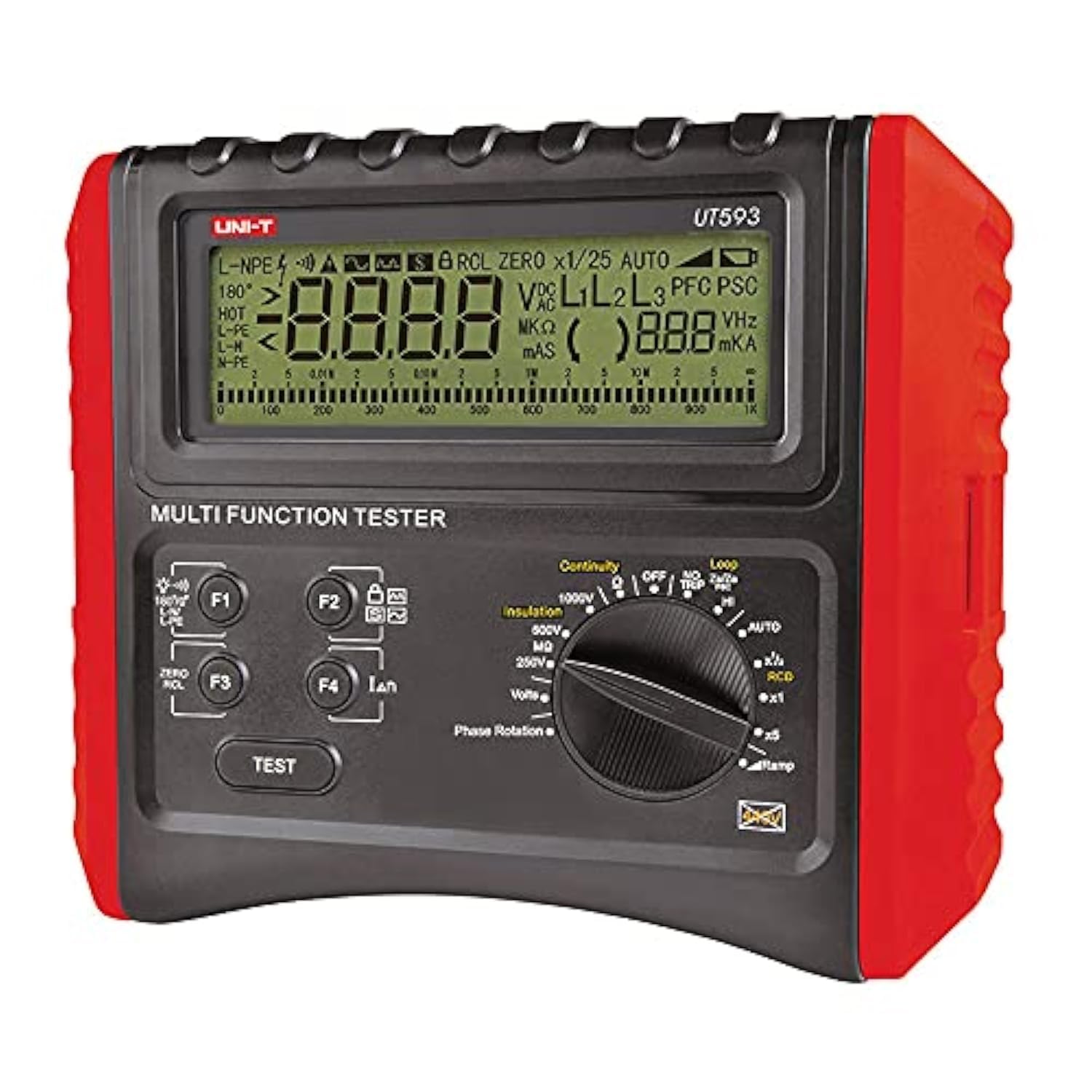

UNI-T Uni-trend UT593 UT595 Multifunction Installation Testers test RCD, loop/line impedance, earth resistance continuity, insulation resistance and AC/DC voltage(UT593)
