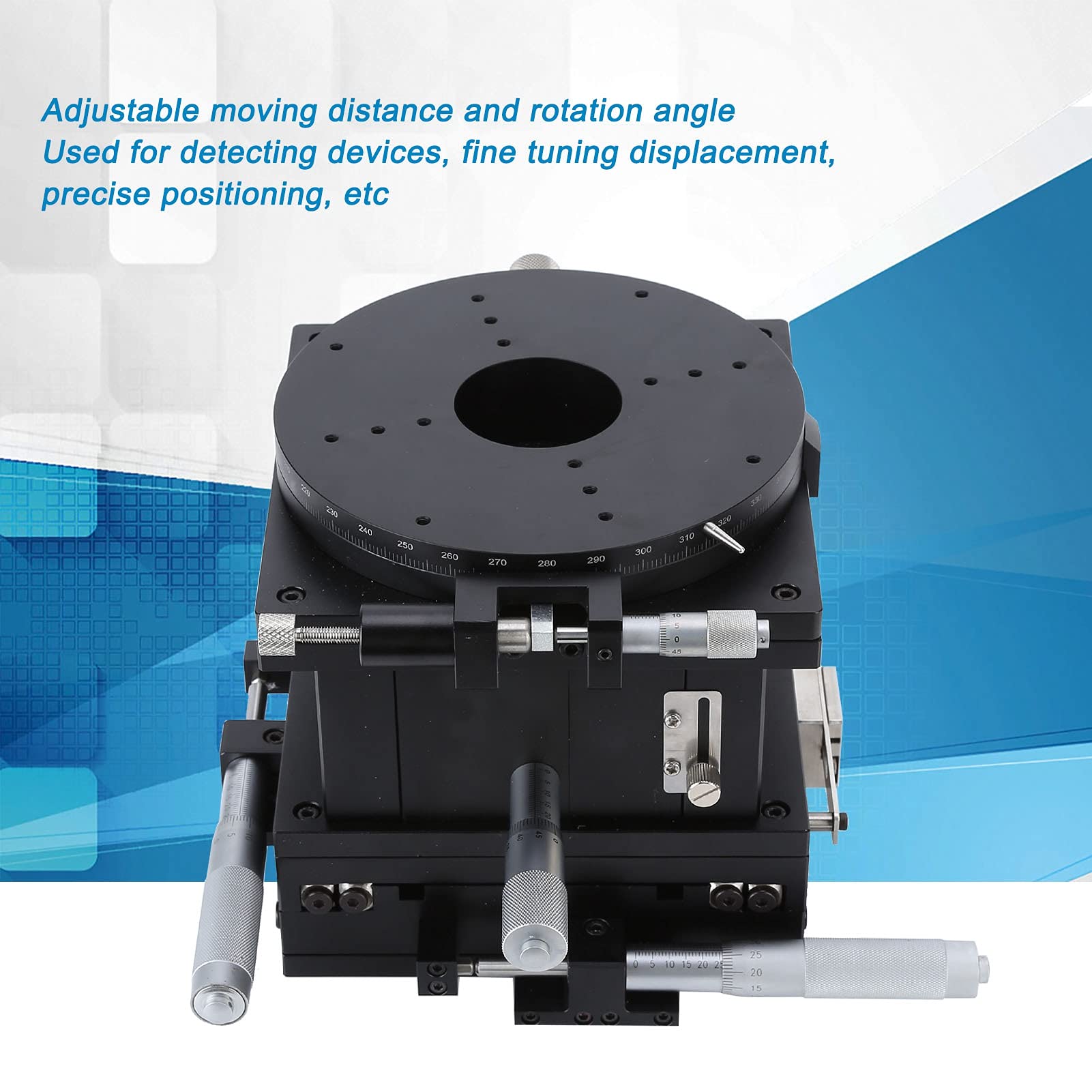

Feature:

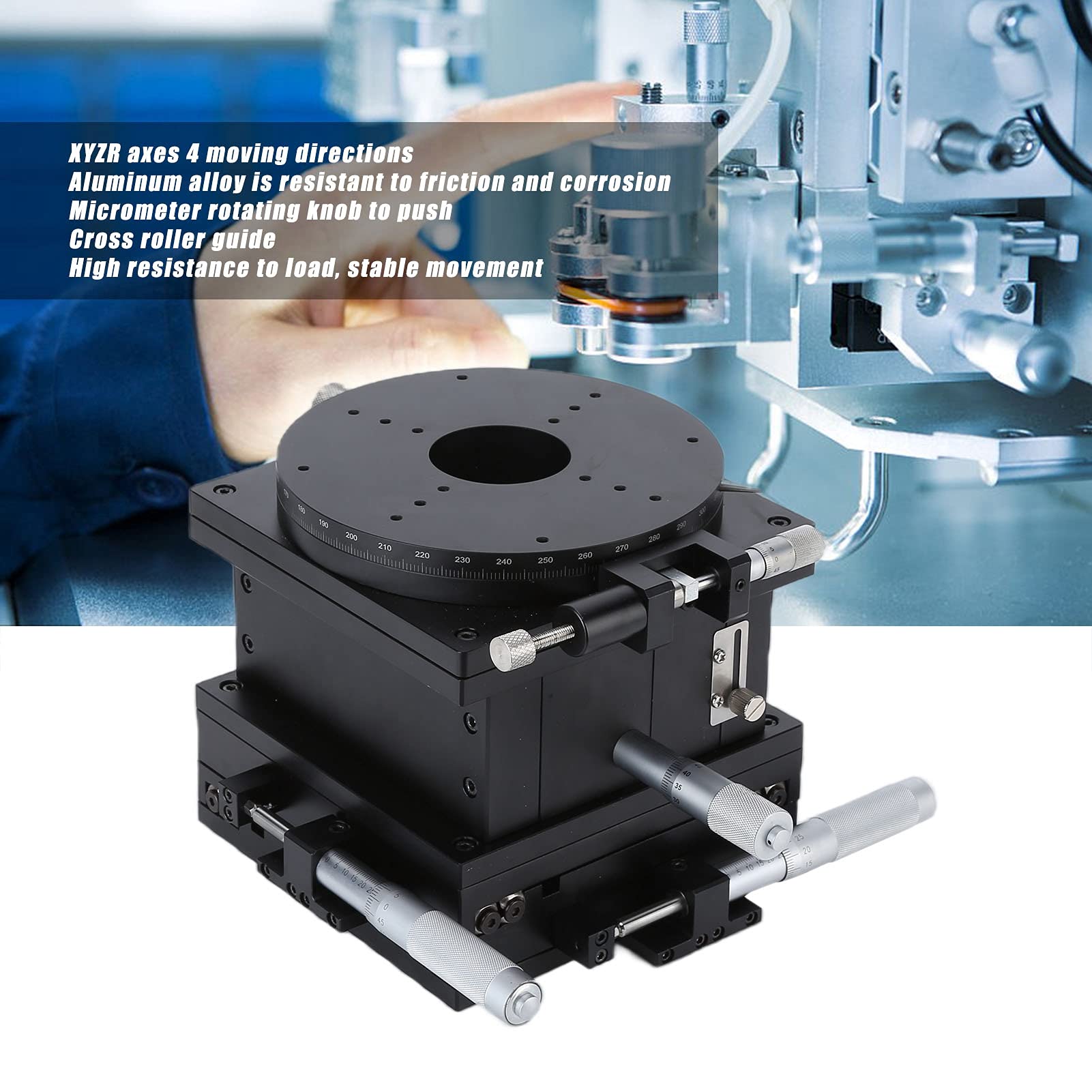

1. The sliding stage has 4 moving directions of XYZR, which can be fine tuned for translation, lifting and rotation.
2. Micrometer rotating knob to push the cross roller guide design, has high accuracy, high load resistance, stable movement.

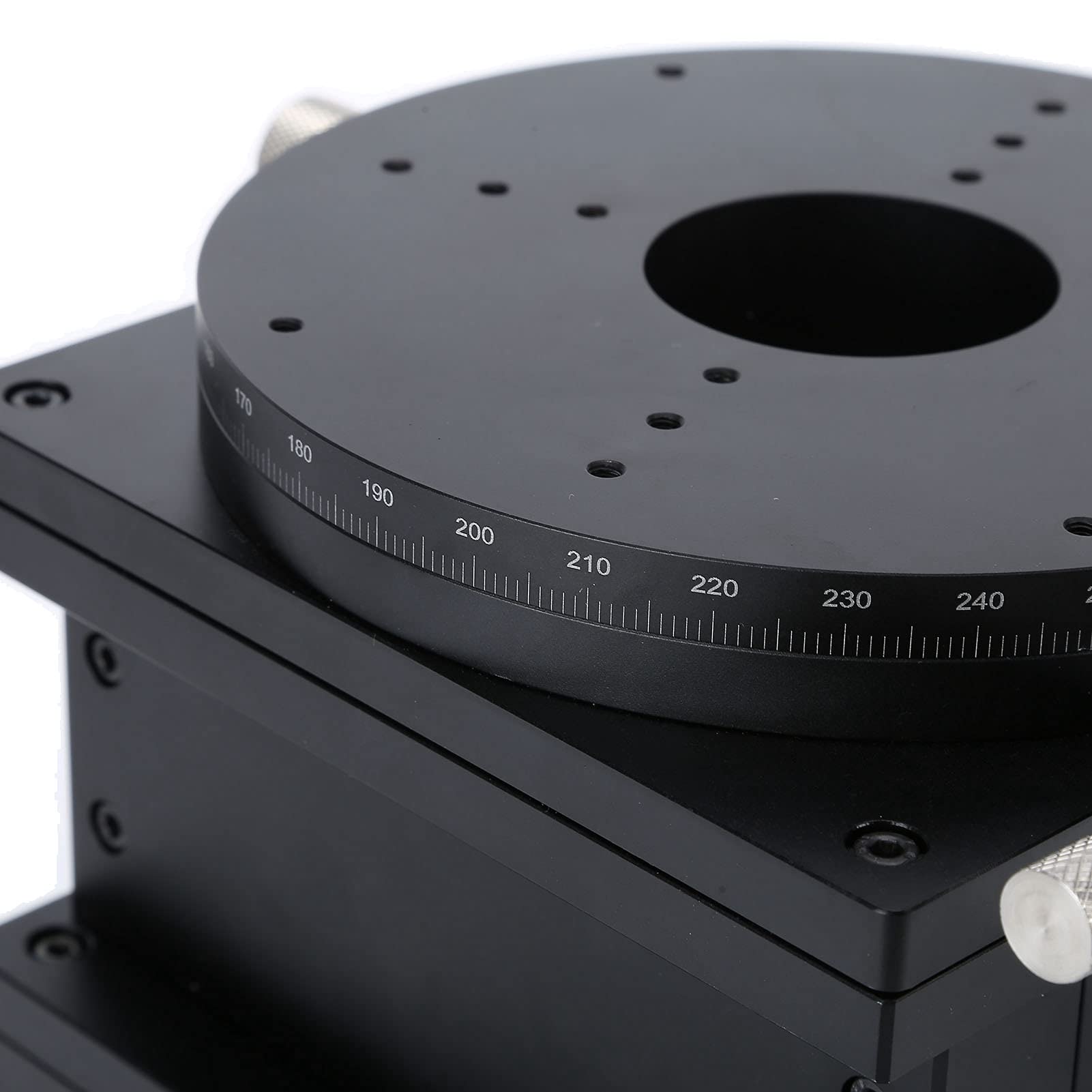

3. The R axes can be rotated 360°, and has R angle protection, all edges are deburred to ensure safe operation.
4. The main body is made of aluminum alloy, black anodized, which is lightweight, wear resistant and corrosion resistant.
5. The vertical load can reach 196N (20Kgf), which is very suitable for precise machining of various machinery in the field of automation.

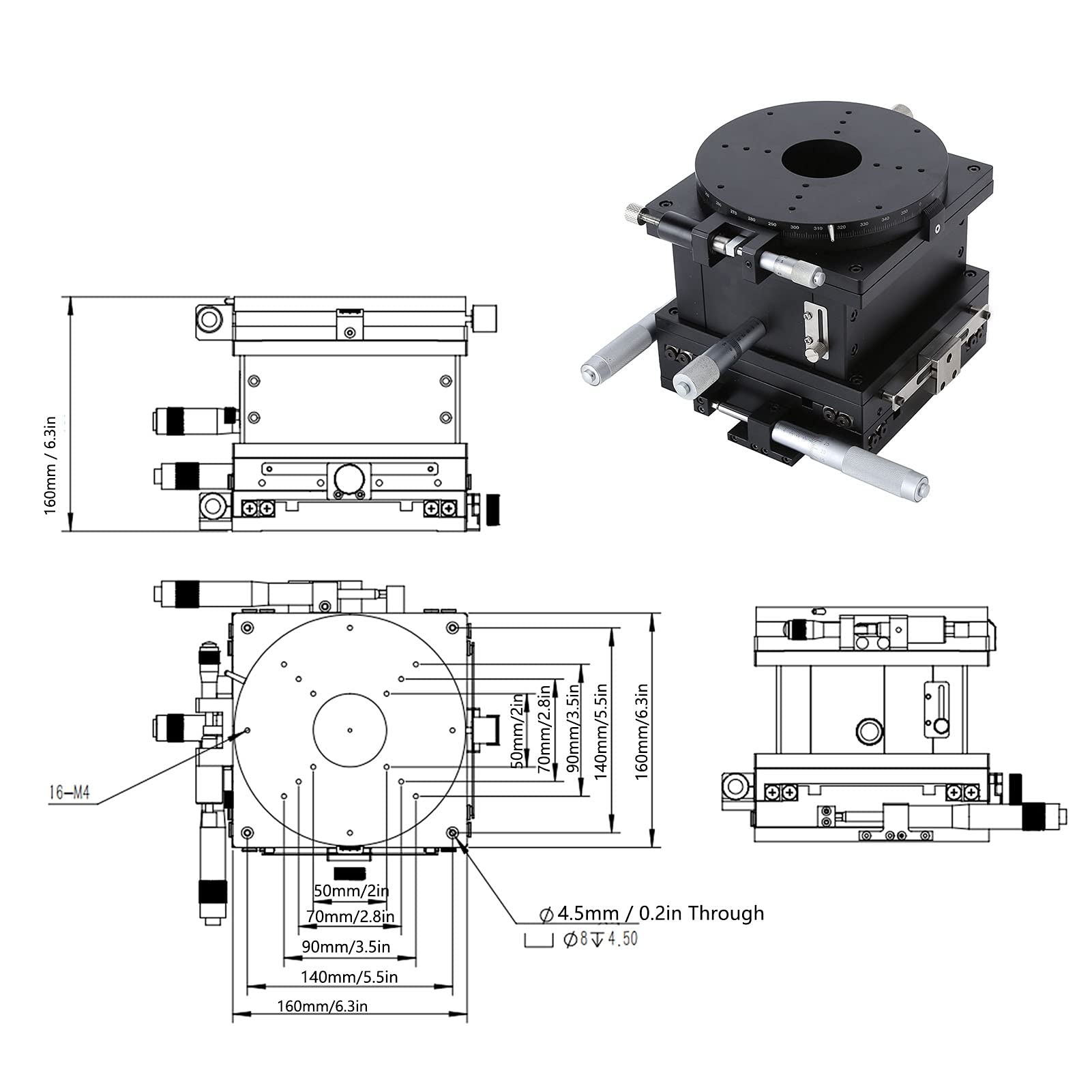

Specification:
Item Type: Sliding Stage
Model: SEMXYZR-160
Round Table Diameter: Approx. 160mm / 6.3in
Movement Direction: XYZR 4 directions
Body Material: Aluminum alloy (black anodized)
Drive Mode: Micrometer rotates the knob to push the cross roller guide (micrometer + cross roller guide)
Glide Trajectory: Cross roller
Rail Type: Micrometer cross roller
Thread Mounting Hole Number: 16
Thread Mounting Hole Diameter: Approx. 4mm / 0.2in
Thread Mounting Hole Depth: Approx. 8mm / 0.3in
Vertical Load Resistance: 196N (20Kgf)
XY Travel Stroke: Approx. ±25mm / 1in
Z Axes Travel Stroke: Approx. ±11mm / 0.4in
R Axes Travel Stroke: 360° rotation
R Axes Fine Adjustment: ±5°
Minimum Scale: 0.01mm
Straightness: 0.03mm

Package List:
1 x Sliding Stage

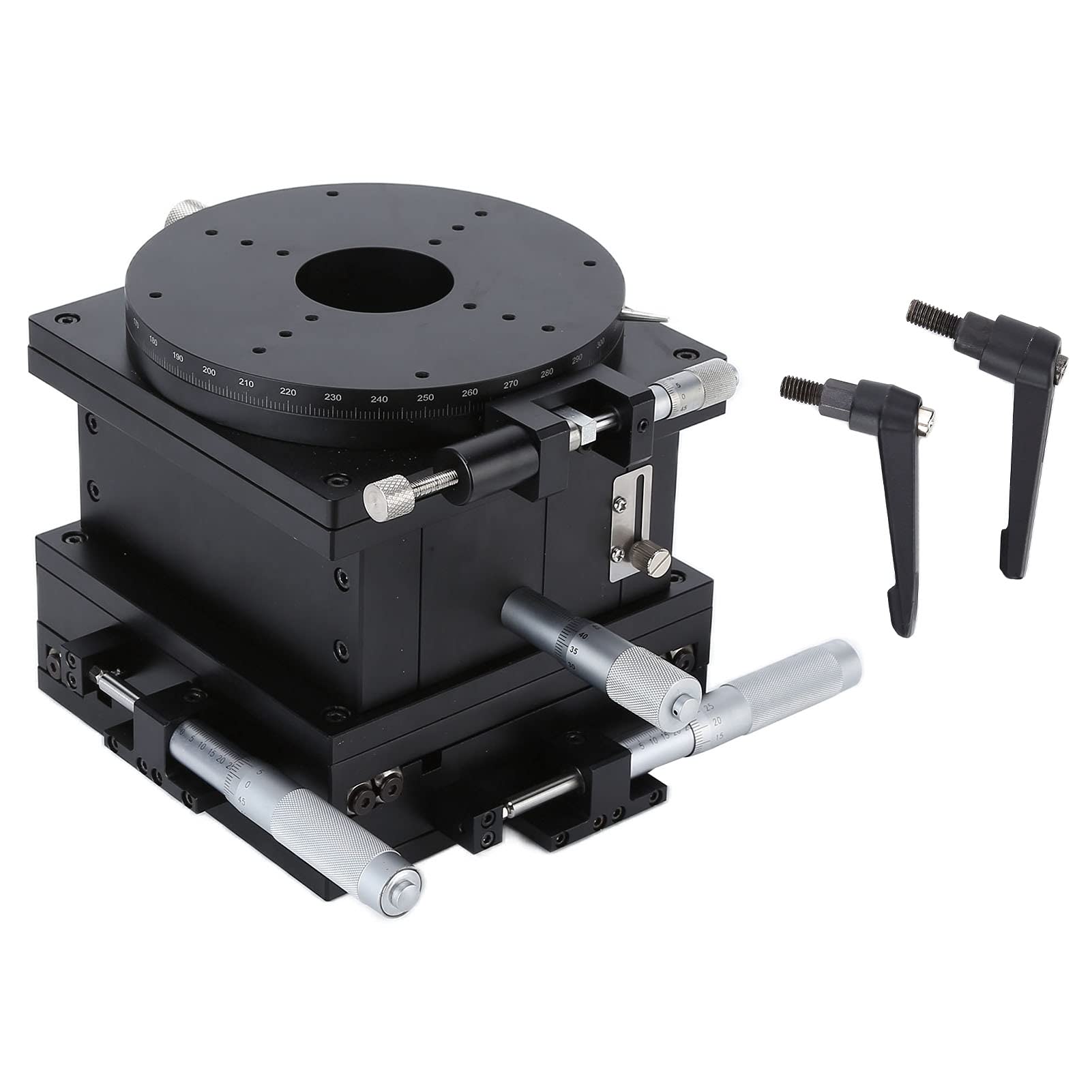

2 x Fixed Handles

Note:
Avoid working in high temperature, high humidity or humid rain water environment,frequent maintenance and add lubricating oil.

Manufacturer	TenNuoDa
Part number	TenNuoDazrn409q5sm
Item Weight	11.1 kg
Manufacturer reference	TenNuoDazrn409q5sm
Item Package Quantity	1

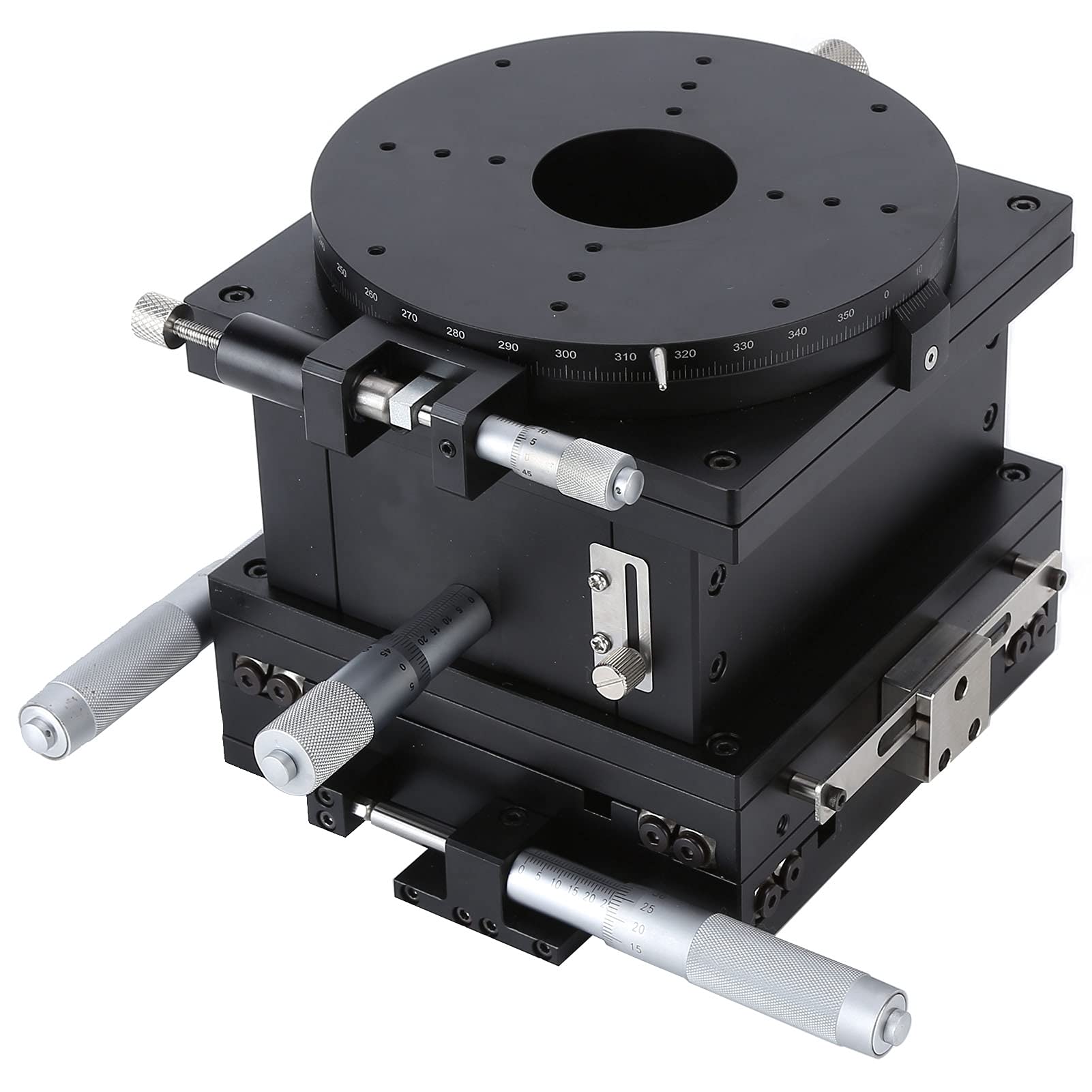

Linear Stage,Precision XYZR 4 Axis Manual Linear Positioning Stage 160mm Round Table Diameter Bearing Tuning Platform Sliding Table Cross Roller Knob Fine Tuning Adjustable Platform
